Cathode Material of Lithium-ion Battery Recycling Machine
Customized Solutions From KERUI Machinery
What's Cathode Material of Lithium-ion Battery Recycling Machine
KERUI Machinery’s lithium battery cathode material recycling equipment is a professional production line designed specifically for the characteristics of lithium battery cathode materials. Comprising graphite and copper foil, the cathode material undergoes processes such as shredding, crushing, and screening to effectively separate the graphite powder and copper. Engineered with negative pressure design, our equipment achieves high graphite recovery rates with no dust pollution. Additionally, we offer customizable solutions tailored to meet the unique needs of each customer.
Raw Materials & Final Products
Raw Materials
The raw material is the cathode of lithium-ion batteries. The cathode of ternary lithium-ion batteries contains graphite and copper.
Final Products
The output products are graphite (containing lithium cobalt oxide or lithium iron phosphate), copper, and a small amount of iron.
Technological Process

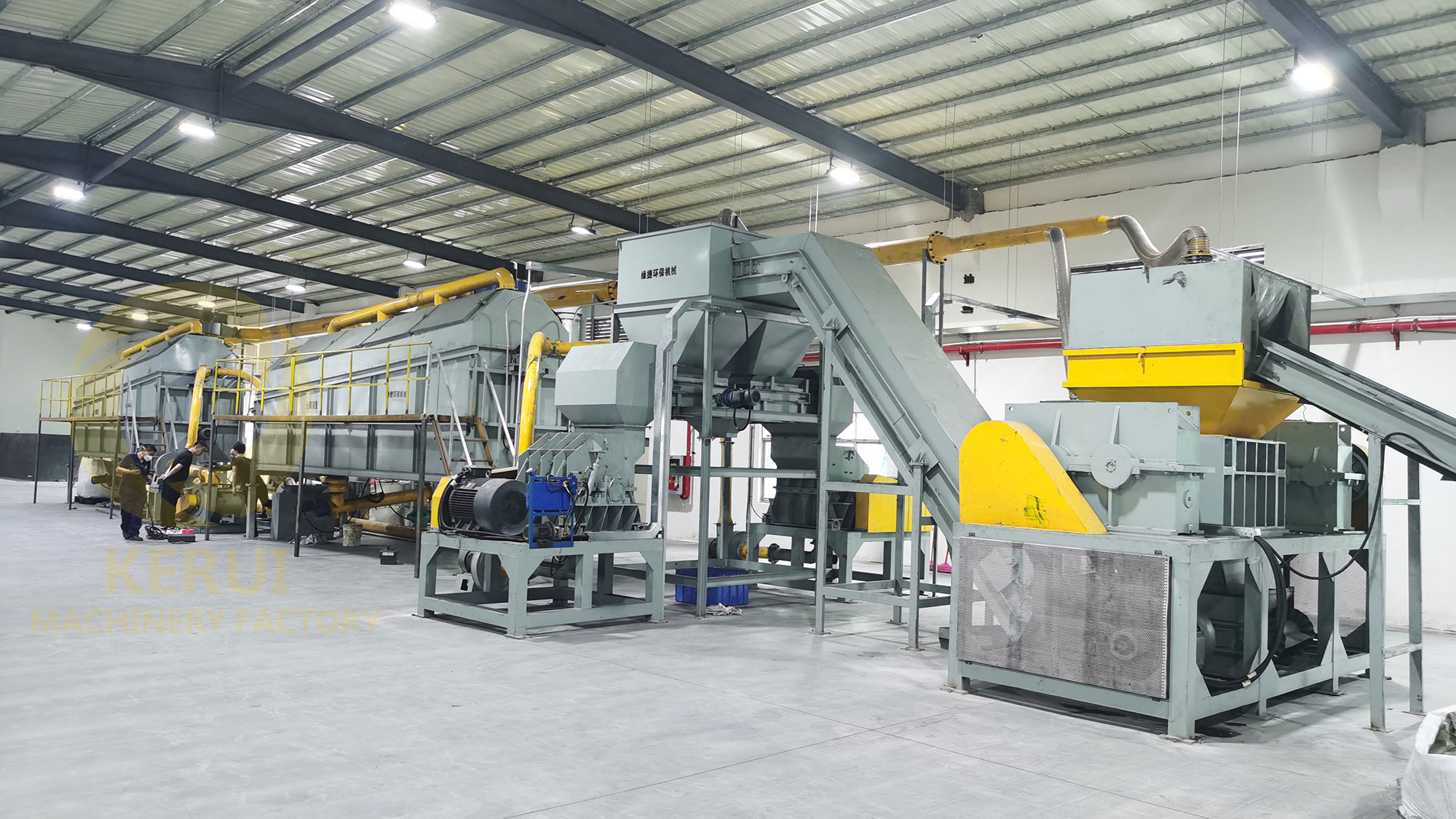

The cathode film is processed through shredder, crusher, high-speed crusher, magnetic separator, fully enclosed drum screen, rotary screen, and other equipment to separate graphite and copper, achieving a recovery rate of over 99%.
Main Machines
Shredder
Shreds the cathode film into small pieces
Crusher
Further crushes the shredded cathode film into smaller pieces
Turbo Grinder
Crushes the material into very small particles, increasing the recovery rate.
Fully Enclosed Drum Screen
Screens out most of graphite
Rotary Screen
Further improves the recovery rate of graphite and copper in the material.
Magnetic Separator
Separates iron from lithium batteries
Technical Parameters
| Model | Capacity |
|---|---|
| KR-Q400 | 300Kg/H |
| KR-Q600 | 500Kg/H |
| KR-Q800 | 1000Kg/H |
| KR-Q1000 | 1500Kg/H |
| KR-Q1200 | 2000Kg/H |
Note: KERUI Machine’s cathode material of lithium-ion battery recycling machine is a customized solution. The data in the table is for reference only. For detailed technical parameters and production line configurations, please consult us.
| Technical Standards | ||
|---|---|---|
| Recovery | Graphite | 99% |
| Copper granules | 99% | |
| Purity | Graphite | 99% |
| Copper granules | 99% | |
Why Choose KERUI
Service One
KERUI MACHINERY has years of experience in the field of recycling scrap metals, with superior design capabilities and after-sales service.
Service Two
KERUI MACHINERY's lithium-ion battery recycling equipment adopts a negative pressure design, resulting in higher recovery rates and no dust pollution.
Service Three
The majority of lithium-ion batteries can be recycled using our equipment without the need for manual disassembly.
Service Four
The entire production line is controlled by PLC, making operation convenient and saving labor.
Service Five
We promise a one-year warranty for our equipment, excluding consumable parts.
