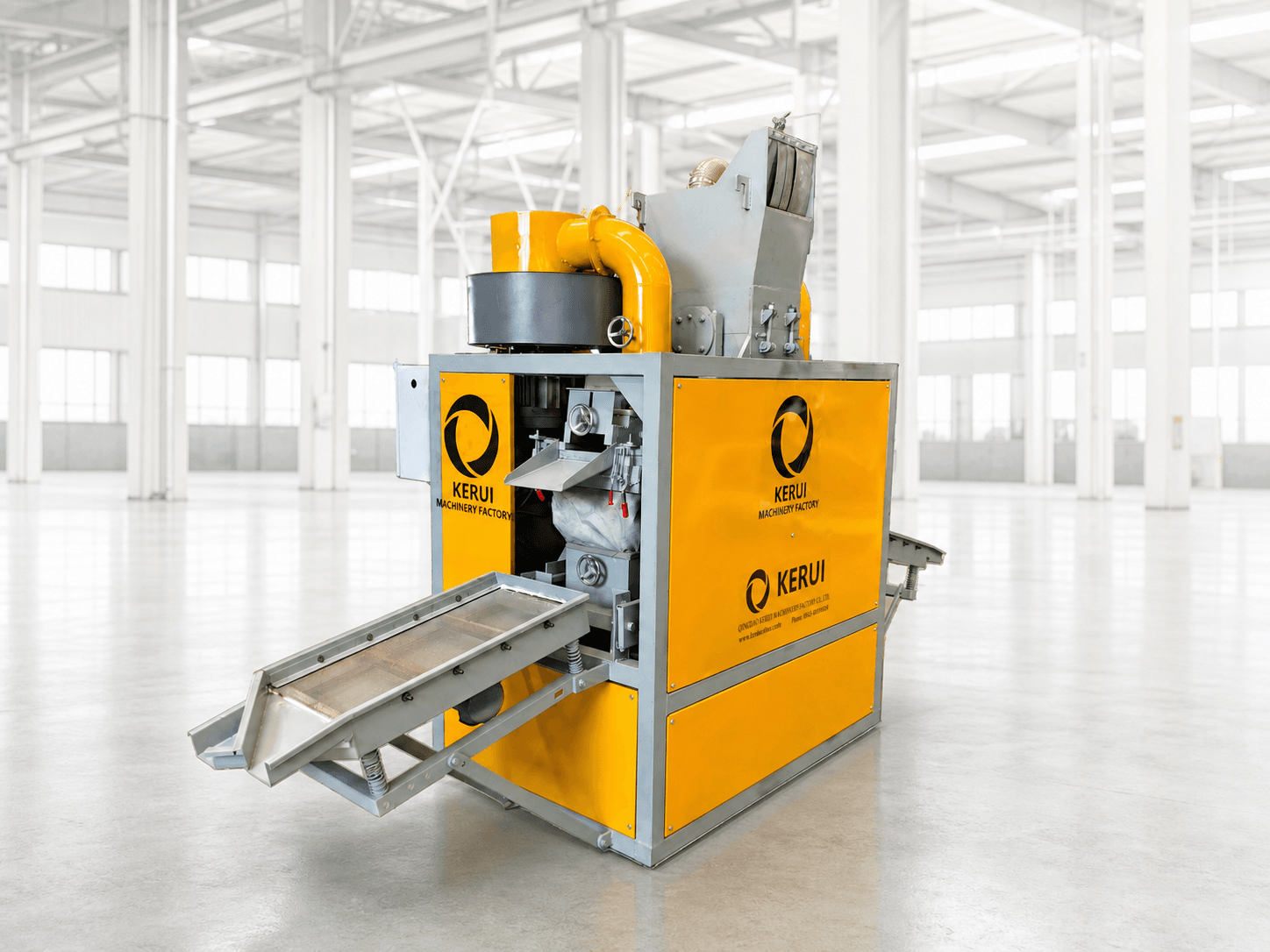

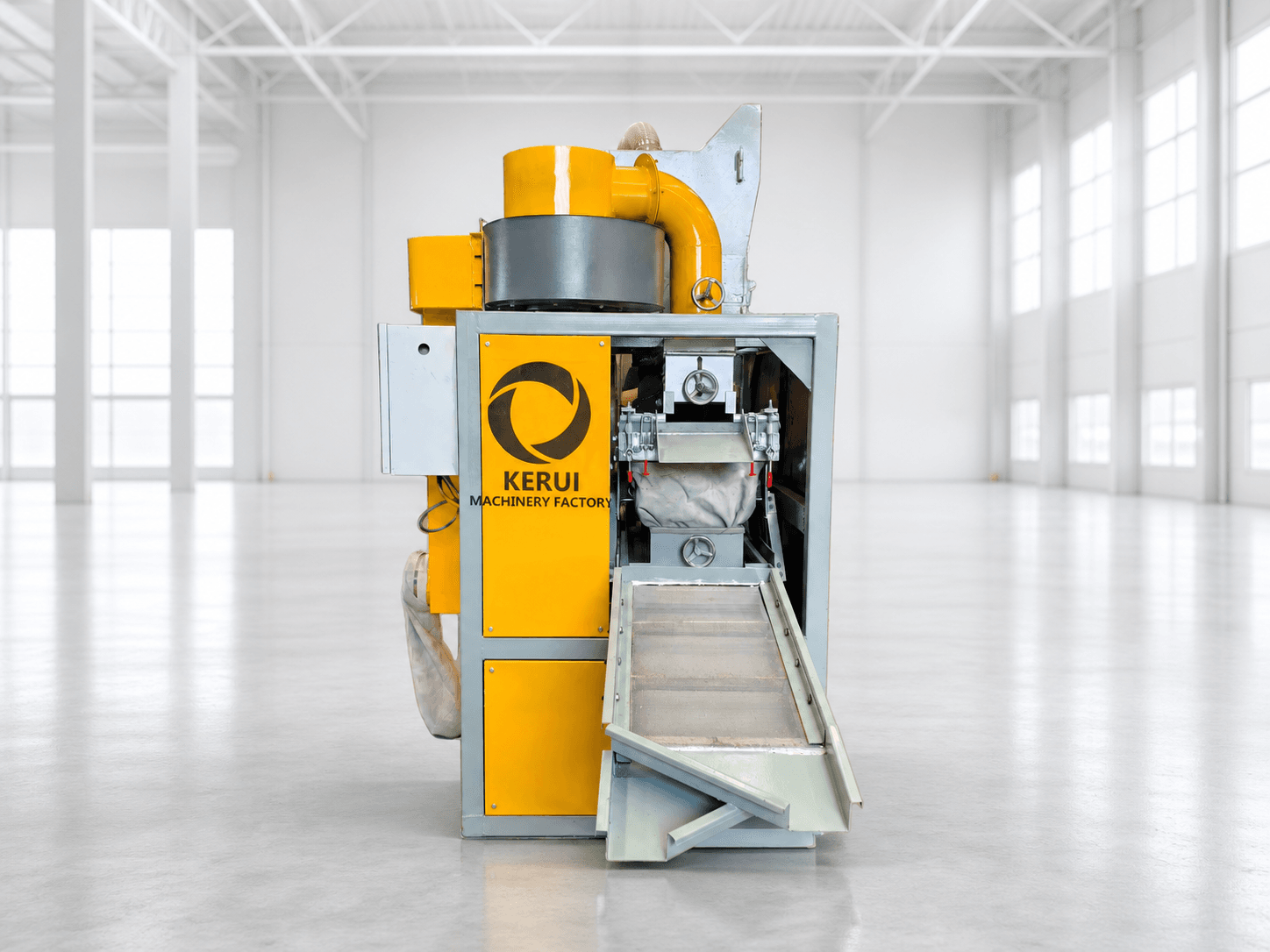

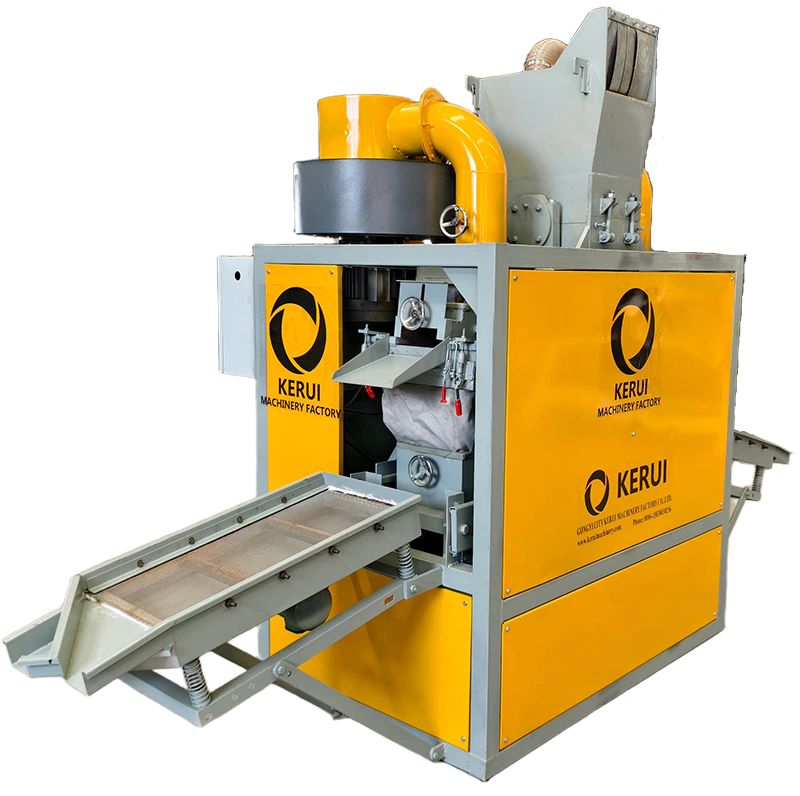

KR300 Copper Wire Granulator
Recover Copper from Prepared Household, Automotive and Communication Cable
The KR300 is a dry-type copper wire granulator for small recycling operations processing prepared household, automotive and communication cable.
Is KR300 Right for Your Material?
Share cable type, diameter, copper content and target capacity. We will confirm direct granulation or the required pre-treatment.
- Direct feed: prepared cable with an outer diameter of 0.5–10 mm
- Cable with an outer diameter of 10–20 mm: stripping and/or pre-shredding required
- Plugs, terminals and iron: remove before feeding or add magnetic separation
- Oily or wet cable: degrease and dry before processing
130–150 kg/h*
Technical-sheet capacity
12.6 kW
Total installed power
Dry Separation
No routine process water
3 Test Batches
Recorded with 100 kg input
Tell Us What Cable You Process
Confirm cable composition and preparation before selecting optional equipment.
Household & Appliance Wire
Prepared household wire and appliance wiring.
Automotive Wiring Harness
Remove connectors and pre-shred bundled harnesses.
Communication & Network Cable
Fine cable may require adjusted feeding or pre-shredding.
Pretreated Mixed Cable
Sorted mixed cable with iron and unsuitable contaminants removed.
From Prepared Cable to Separated Outputs
Dry granulation, airflow separation and vibration refinement produce separate copper-rich and plastic-rich streams.
Sort & Prepare
Remove plugs, iron, oil and unsuitable contaminants before feeding.
Granulate
The 5.5 kW crusher releases copper from the insulation.
Air Separate
Frequency-controlled airflow separates the material by density.
Vibration Refine
Two vibrating separation tables further screen and refine both fractions.
Collect Outputs
Copper-rich and plastic-rich streams discharge separately.
Three Documented 100 kg Test Batches
These figures describe the recorded batches only and are not guaranteed results for every cable mixture.
100 kg Input · 1 Hour
- Feed: approx. 25% copper · cable diameter 2–15 mm
- Pre-treatment: stripping and shredding
- Copper-rich output: 19.0 kg
- Recorded copper purity: 98.2%
- Recorded copper recovery: 97.4%
- Plastic-rich output: 77.5 kg
100 kg Input · 1 Hour
- Feed: approx. 35% copper · tape, connectors and minor contaminants
- Pre-treatment: shredding
- Copper-rich output: 34.1 kg
- Recorded copper purity: 98.5%
- Recorded copper recovery: 97.4%
- Plastic-rich output: 62.8 kg
100 kg Input · 1 Hour
- Feed: approx. 20% copper · high proportion of fine wire
- Pre-treatment: direct feed; optional pre-shredding by diameter
- Copper-rich output: 19.2 kg
- Recorded copper purity: 97.8%
- Recorded copper recovery: 94.0%
- Plastic-rich output: 78.1 kg
Evidence note: the current report does not state the purity sampling method, laboratory method or repeated-test count. Publish the purity and recovery figures as recorded batch data, not as universal guarantees.
A Compact Entry-Level Cable Recycling System
The KR300 is designed for small recycling operations processing prepared household, automotive and communication cable. It keeps installed power and footprint lower than the larger KR models while retaining dry crushing and separation.
- Lower installed power for small operations
- Compact main machine and working footprint
- Dry crushing and separation
- Configurable pre-treatment for bundled or contaminated cable
- Material-based configuration before quotation
KR300 Technical Specifications
Use the final quotation and equipment list for installation and shipment planning.
Technical-sheet capacity
130–150 kg/h*
Total installed power
12.6 kW
Crusher motor
5.5 kW
Main machine dimensions
1700 × 1300 × 2250 mm · excluding vibrating tables
Vibrating table dimensions
950 × 450 × 280 mm
Vibrating table motor
0.25 kW × 2
Air separation table
2.2 kW · frequency controlled
Fan under air separator
2.2 kW · frequency controlled
Dust extraction fan
2.2 kW
Dust collection
Standard bag-type dust collection
Main machine net weight
680 kg
Separation method
Dry mechanical separation
*The technical sheet lists 130–150 kg/h. Actual throughput depends on cable type, diameter, copper content, preparation, contamination and feeding consistency. Three recorded 100 kg batches each ran for 1 hour, equivalent to 100 kg/h for those batches. Confirm the planned capacity against your material before sizing the line.
Core Machine or Complete Line?
The final supply scope must follow the signed quotation. Complete-line photos do not automatically represent the standard KR300 package.
Core KR300 System
- Crusher / main machine
- Air and gravity separation unit
- Two vibrating separation tables
- Electrical control cabinet
- Standard bag-type dust collection
- Basic spare parts and tools
Build Around Your Feed
- Pre-shredder
- Feed conveyor
- Magnetic separator
- Electrostatic separator
- Water separation table
- Pulse dust collection upgrade
Before You Select a KR300
The KR300 processes prepared household wire, appliance wire, network cable, automotive wire and selected mixed cable. Cable with an outer diameter of 0.5–10 mm can be evaluated for direct feeding. Cable with an outer diameter of 10–20 mm requires stripping and/or pre-shredding. Remove plugs, terminals, iron, oil and excess moisture before feeding.
No. The technical sheet lists 130–150 kg/h, but actual throughput varies with cable type, diameter, copper content, preparation and feeding conditions. Three recorded 100 kg batches each ran for 1 hour. Confirm the planned capacity against your material before sizing the line.
Not always. Short, clean and suitably sized wire may feed directly. Long, bundled, thick or mixed cable generally requires cutting or pre-shredding before entering the KR300.
The core crushing and air-separation process is dry. A water separation table is optional when the material and output target justify wet secondary separation.
Factory trials are supported. Send material photos or videos, cable diameter, estimated copper content, contaminants and target capacity first. Our team will confirm whether a factory trial is required and arrange the test conditions.
Get a KR300 Configuration Based on Your Cable
Tell us what cable you process and what output you need. We will recommend the preparation method, core machine and optional modules.
- Cable type and diameter
- Estimated copper content
- Contaminants and preparation
- Target capacity and hours
- Site voltage and frequency
Send Your Material Details
We use the information you submit to evaluate your material, recommend a configuration and follow up on your quotation request.
Not Sure If KR300 Matches Your Cable?
Send photos or a short video. We will review the material before recommending the configuration.
