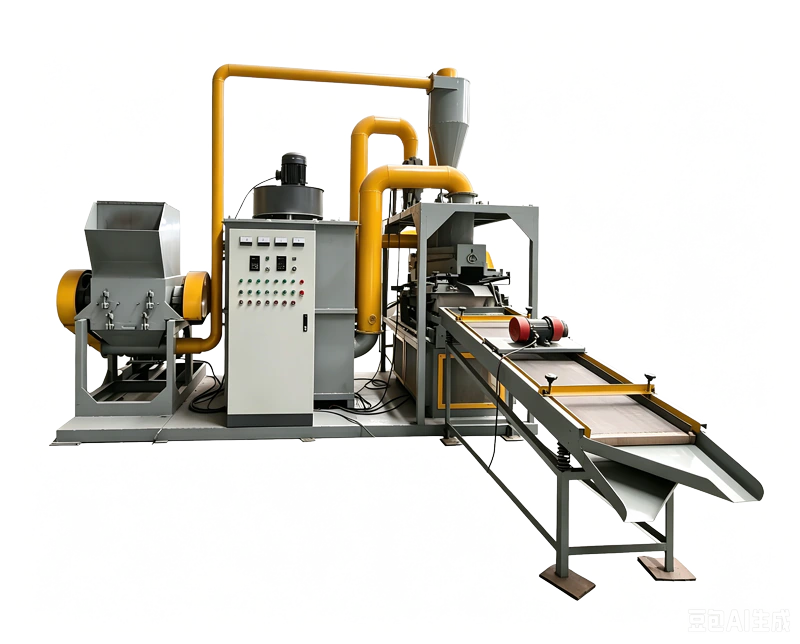

KR600 Copper Wire Granulator
Recover Copper from Prepared Industrial, Thick and Armored Cable
The KR600 is a dry-type integrated copper wire granulator for medium recycling operations processing prepared industrial, thick and armored cable.
Is KR600 Right for Your Material?
Share cable type, diameter, copper content and target capacity. We will confirm direct granulation or the required pre-treatment.
- Direct feed: prepared cable with an outer diameter of 0.5–10 mm
- Cable with an outer diameter of 10–20 mm: stripping and/or pre-shredding required
- Armored or iron-bearing cable: pre-shredding and magnetic separation required
- Oily or wet cable: degrease and dry before processing
300–400 kg/h*
Technical-sheet capacity
46.81 kW
Total installed power
Dry Separation
No routine process water
2 Test Batches
Recorded with 100 kg input
Tell Us What Cable You Process
Confirm cable composition and preparation before selecting optional equipment.

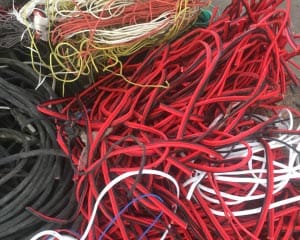

Industrial Power Cable
Large-diameter industrial cable after controlled pre-shredding.
Armored Cable
Pre-shred and remove steel with magnetic separation before granulation.

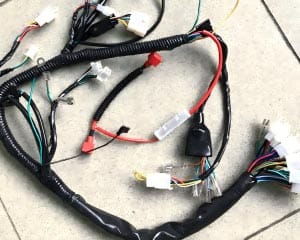

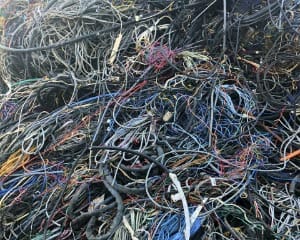

Heavy Mixed Cable
Sorted heavy cable with plugs, iron and unsuitable contaminants removed.
Pretreated Thick Cable
Prepared thick or bundled cable sized for stable feeding.
From Prepared Cable to Separated Outputs
Prepared cable enters the integrated KR600 for dry granulation, airflow separation and vibration refinement.
Prepare Feed
Pre-shred large or bundled cable and remove iron before the main machine.
Granulate
The 30 kW crusher releases copper from heavy insulation.
Air Separate
Frequency-controlled airflow separates the material by density.

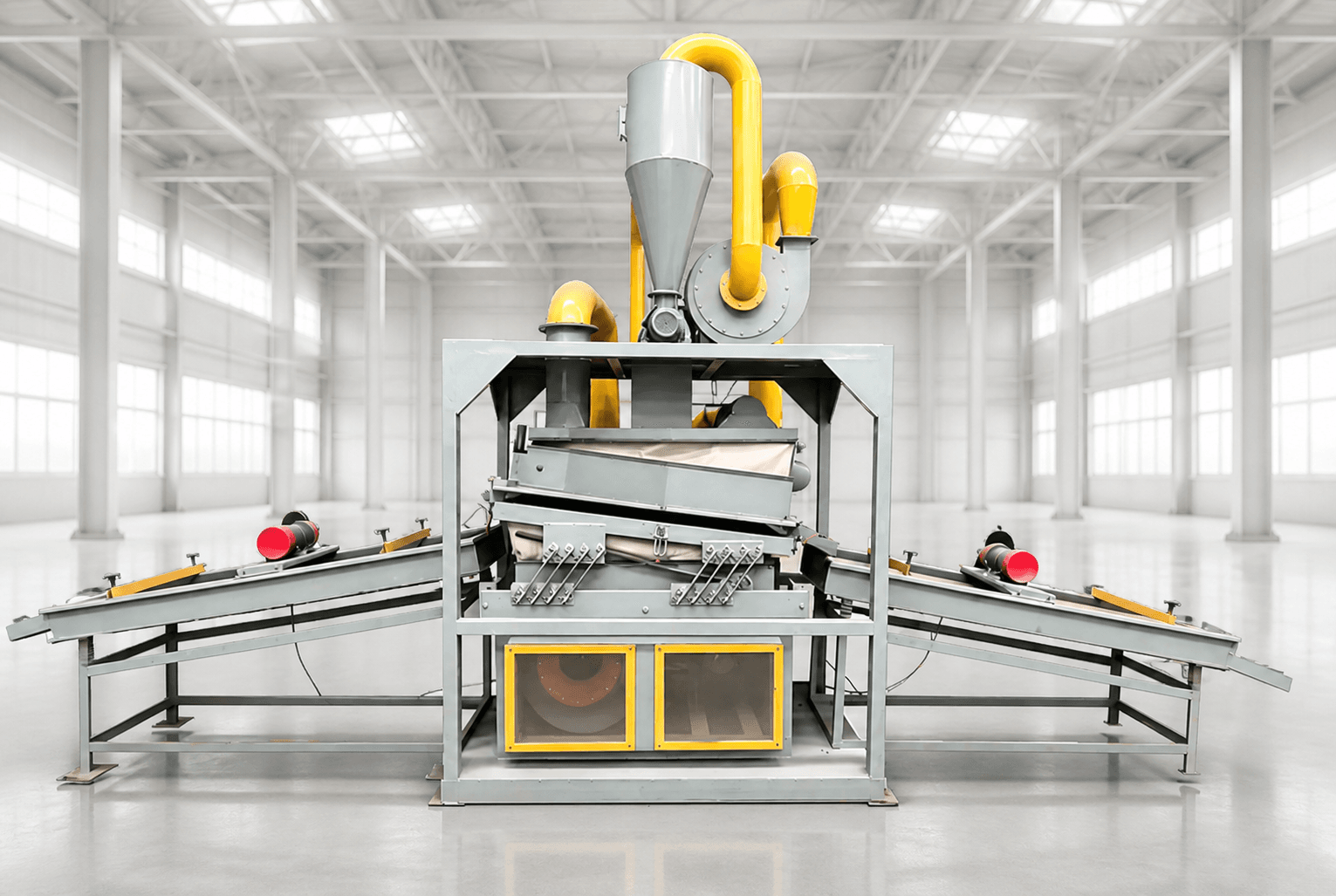

Vibration Refine
Two vibrating separation tables further screen and refine both fractions.
Collect Outputs
Copper-rich and plastic-rich streams discharge separately.
Two Documented 100 kg Test Batches
These figures describe the recorded batches only and are not guaranteed results for every cable mixture.
100 kg Input · 30 Minutes
- Feed: approx. 50% copper · large-diameter cable
- Pre-treatment: shredding
- Copper-rich output: 49.0 kg
- Recorded copper purity: 99.0%
- Recorded copper recovery: 97.8%
- Plastic-rich output: 48.5 kg
100 kg Input · 30 Minutes
- Feed: approx. 35–45% copper · steel armor
- Pre-treatment: shredding and magnetic separation
- Copper-rich output: 41.0 kg
- Recorded copper purity: 98.5%
- Recorded copper recovery: 96.5%
- Plastic-rich output: 45.0 kg
- Iron and other materials: 14.0 kg
Evidence note: the current report does not state the purity sampling method, laboratory method or repeated-test count. Publish the purity and recovery figures as recorded batch data, not as universal guarantees.
A Higher-Capacity Industrial Cable Recycling System
The KR600 is designed for medium recycling operations processing prepared heavy industrial, thick and armored cable. Its 30 kW crusher and integrated main machine provide the larger-capacity option in the KR range, with pre-shredding and magnetic separation selected to match the feed.
- Higher technical-sheet capacity in the KR range
- 30 kW crusher for prepared heavy cable
- Integrated dry crushing and separation
- Pre-treatment and magnetic separation selected by feed
- Material-based configuration before quotation
KR600 Technical Specifications
Use the final quotation and equipment list for installation and shipment planning.
Technical-sheet capacity
300–400 kg/h*
Total installed power
46.81 kW
Crusher motor
30 kW
Main machine dimensions
4300 × 1900 × 3700 mm · includes piping and platform; excludes pre-shredder and conveyors
Vibrating table dimensions
2030 × 645 × 1110 mm
Vibrating table motor
0.18 kW × 2
Air separation table
2.2 kW · frequency controlled
Fan under air separator
3 kW · frequency controlled
Dust extraction fan
7.5 kW
Dust collection / airlock
36-bag collector · 0.75 kW airlock
Main machine net weight
4000 kg
Separation method
Dry mechanical separation
*The technical sheet lists 300–400 kg/h. Actual throughput depends on cable type, diameter, copper content, preparation, contamination and feeding consistency. Two recorded 100 kg batches each ran for 30 minutes, equivalent to 200 kg/h for those test configurations. Confirm the planned capacity against your material before sizing the line.
Core Machine or Complete Line?
The final supply scope must follow the signed quotation. Complete-line photos do not automatically represent the standard KR600 package.

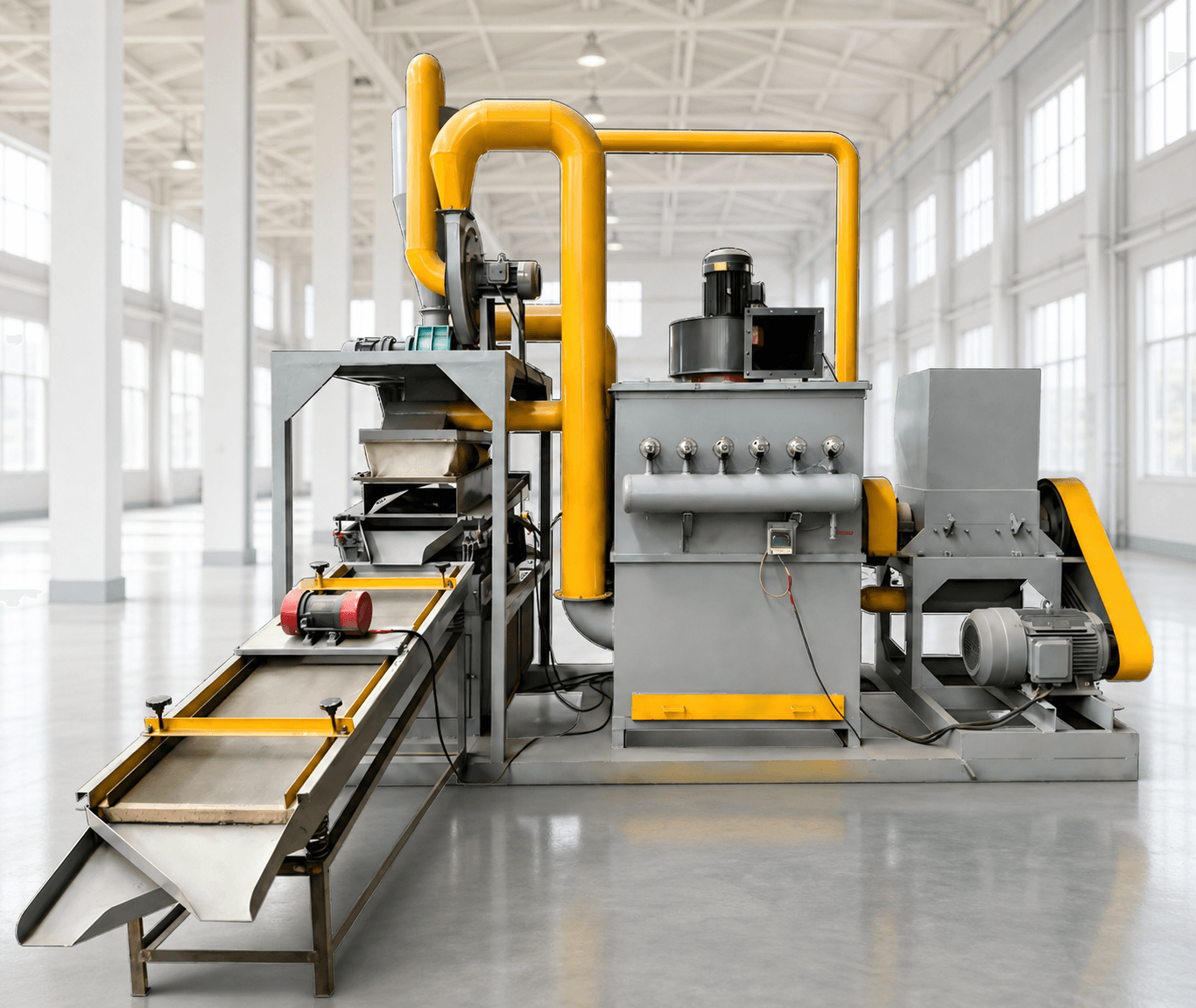

Integrated KR600 System
- Integrated KR600 main machine with 30 kW crusher
- Air and gravity separation unit
- Two vibrating separation tables
- Electrical control cabinet
- Dust collection with 7.5 kW fan and 0.75 kW airlock
- Basic spare parts and tools
Build Around Your Feed
- Pre-shredder
- Feed conveyor
- Magnetic separator
- Electrostatic separator
- Water separation table
- Pulse dust collection upgrade
Before You Select a KR600
Get a KR600 Configuration Based on Your Cable
Tell us what cable you process and what output you need. We will recommend the preparation method, core machine and optional modules.
- Cable type and diameter
- Estimated copper content
- Contaminants and preparation
- Target capacity and hours
- Site voltage and frequency
Send Your Material Details
We use the information you submit to evaluate your material, recommend a configuration and follow up on your quotation request.
Not Sure If KR600 Matches Your Cable?
Send photos or a short video. We will review the material before recommending the configuration.
